Power Management: Hardware Knobs - Fundamentals and Concepts

Power management is fundamentally about controlling how hardware components consume power while maintaining the compute performance required by applications. Modern CPUs and accelerators provide a variety of “knobs”—configuration parameters that allow the system to adjust power consumption based on workload demands.

What are Power Management Knobs?

Power management knobs are hardware configuration options that control:

• How fast a CPU runs (frequency/voltage)

• Whether cores are active or sleeping (power states)

• How the system handles thermal conditions

• When the system can enter low-power modes

These knobs enable a fundamental trade-off: lower power consumption often comes at the cost of reduced performance. Understanding when and how to adjust these knobs is essential for energy-aware HPC.

The Power-Performance Trade-off

Before diving into specific mechanisms, it’s important to understand the underlying physics:

$$P = CV^2f + I_{leak}V$$

Where:

• C = capacitance (depends on hardware design)

• V = voltage (adjustable)

• f = frequency (adjustable)

• I_{leak} = leakage current (depends on temperature and voltage)

Key insights:

• Dynamic power (active computation) scales with V² and f—small voltage reductions yield significant power savings

• Leakage power becomes dominant when not computing

• Frequency can be increased only if voltage is increased (maintaining voltage margin)

• Lowering both frequency and voltage saves power but reduces performance

This relationship enables Dynamic Voltage and Frequency Scaling (DVFS)—the most common power management technique.

CPU Core Frequency

Dynamic Voltage and Frequency Scaling (DVFS) allows the CPU to adjust its operating frequency and voltage based on workload demand. The CPU operates at different P-states (performance states), each defined by a specific frequency-voltage pair:

• Turbo/Boost P-states - Highest frequency/voltage (highest power, highest performance)

• Nominal P-state - Base frequency/voltage specified by the CPU manufacturer

• Lower P-states - Progressively lower frequency and voltage (progressive power reduction and performance loss)

Why adjust frequency?

• A job waiting on I/O doesn’t need maximum frequency

• Batch jobs with loose deadlines can run slower with less power

• Thermal constraints may force lower frequency

• Power budgets may require lower frequency across the system

There are multiple types of power states available on modern CPUs:

• Execution (performance) power states (P-states) - Different frequency/voltage pairs during active execution

• Idle (sleep) power saving states (C-states) - Low-power modes when CPU is not executing instructions

• Thermal throttling states (T-states) - Automatic frequency reduction under thermal stress

• Shutdown states (S-states) - System-level power modes

Performance States (P-states)

P-states formalize the frequency/voltage pairs available on a CPU. On Intel CPUs, P-states are defined as percentage of maximum frequency:

• P0 - Maximum supported turbo frequency

• P1 - Maximum non-turbo frequency (nominal)

• P2-P15 - Lower frequencies, typically in 100 MHz steps

Important for HPC: Different instruction sets have different maximum boost frequencies:

• SSE instructions - Highest turbo frequency

• AVX/AVX2 instructions - Medium turbo frequency (lower than SSE due to thermal/power constraints)

• AVX-512 instructions - Lowest turbo frequency (significantly more power-intensive)

This multi-level approach ensures power budget respect while still allowing AVX-512 workloads to benefit from performance gains.

AMD EPYC P-states

AMD provides similar P-state capabilities but with architectural differences:

• Per-core frequency control (not unified across all cores)

• More granular P-state levels

• Integrated IO die affects power envelope

Idle Power States (C-states)

While P-states control active computation power, C-states (idle/sleep states) reduce power consumption when the CPU is not executing instructions.

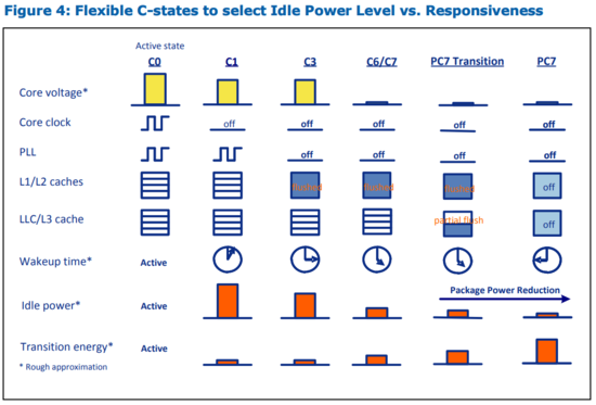

C-state Hierarchy

Modern CPUs support multiple C-states, each deeper in power-saving:

C-state	Name	Power Saving	Wake Latency	Use Case
C0	Active	None	N/A	Running instructions
C1	Halt	Minimal (~5-10%)	<1 μs	Brief idle periods
C2	Stop-Clock	Moderate (~20-30%)	1-10 μs	Longer idle periods
C3+	Sleep/Deep Sleep	Significant (>50%)	10-100+ μs	Long idle periods

Key point: Deeper C-states save more power but take longer to wake up. The OS automatically selects the appropriate C-state based on how long the CPU is expected to be idle.

When C-states Matter

C-state efficiency is critical for:

• Loosely coupled parallel jobs - Different processes often idle while waiting

• Irregular workloads - Bursty I/O patterns create idle windows

• Multi-threaded applications - Some threads finish before others

• System services - Background tasks create frequent idle periods

C-state disabled systems can waste 20-50% of power budget if workloads have idle periods.

Thermal Throttling (T-states)

When a CPU exceeds its thermal limit, the OS automatically reduces frequency—this is thermal throttling:

$$T_{thermal} \text{ states}: \text{Frequency} = P_{\text{nominal}} \times (1 - \text{throttle_percentage})$$

Why it happens:

• Sustained high power consumption → heat buildup

• Cooling capacity insufficient for current power

• Thermal safety to prevent chip damage

In HPC context:

• System administrators must ensure adequate cooling capacity

• Thermal throttling is a sign of inadequate cooling or power budget exceeded

• Workload distribution affects thermal profile (not just power consumption)

Shutdown States (S-states)

S-states (System states) control power saving of the entire system, not just the CPU:

S-state	Description	Power Consumption	Wake Time
S0	Working	Full	Immediate
S1	Standby	~5-10 W	<2 sec
S2	Sleep	~1-2 W	<30 sec
S3	Deep Sleep	<1 W	>30 sec
S4	Hibernation	Nearly 0 (battery drain)	Minutes
S5	Soft Off	Minimal	Cold boot

In HPC: S-states are rarely used during job execution but critical for:

• Idle cluster management between jobs

• Emergency power down procedures

• Data center energy optimization

ACPI: The Power Management Standard

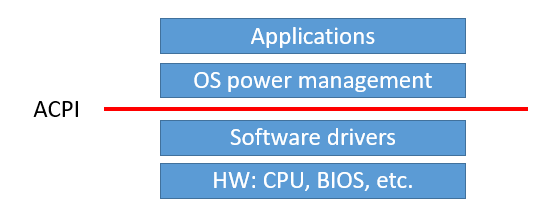

The Advanced Configuration and Power Interface (ACPI) is the industry-standard specification that defines how operating systems control power management in modern computers.

ACPI provides:

• Standardized interfaces for communicating with power management hardware

• Device enumeration and discovery

• Power State definitions (P, C, T, S states)

• Thermal management policies

• Battery and AC power awareness

Operating System Role

The OS plays a crucial role in power management:

1. Monitors workload - Measures CPU utilization, I/O patterns

2. Selects appropriate states - Chooses P-states and C-states dynamically

3. Implements governors - Uses scaling policies (performance, powersave, etc.)

4. Respects constraints - Maintains thermal limits, power budgets

Scaling Drivers and Governors

A scaling driver is the Linux kernel component that translates high-level power management policies into hardware register changes. Different CPU architectures require different drivers:

Scaling drivers:

• acpi-cpufreq - ACPI-based, works with firmware tables, portable across vendors

• intel_pstate - Intel-specific, direct MSR control, Haswell+, more responsive

Scaling governors implement policies that decide which P-state (frequency) to use:

• performance - Always maximum frequency (highest performance, highest power)

• powersave - Always minimum frequency (lowest power, lowest performance)

• ondemand - Scale based on CPU utilization (balanced approach)

• conservative - Gradual frequency stepping (more stable than ondemand)

• userspace - Application/user-controlled frequency selection

Why Power Management Matters for HPC

Cost: Energy is typically 20-30% of HPC operational costs. Optimizing power management directly reduces budgets, making systems more competitive.

Performance: Modern CPUs are power-limited—you cannot maintain maximum frequency on all cores indefinitely. Understanding power envelopes is critical for performance modeling and prediction.

Reliability: Thermal management and power delivery are key reliability concerns. Poor power management leads to thermal throttling, reduced lifetime, and failures. Proactive power management improves system reliability.

Sustainability: Reducing power consumption directly reduces carbon footprint—increasingly important for HPC procurement decisions and environmental responsibility.

Multi-tenant systems: In shared HPC centers, users must cooperate on power budgets. System-level power management enforces fairness and prevents individual jobs from consuming the entire power envelope.

Summary: Episode 0 Learning Outcomes

After completing this episode, you should understand:

1. Power management fundamentals - What knobs are available and why they matter

2. Physics foundation - How P = CV²f governs power and frequency relationships

3. Power state categories - P-states, C-states, T-states, and S-states and their roles

4. ACPI standard - How operating systems coordinate power management via standardized interfaces

5. Scaling governors - Basic policies for frequency selection (performance, powersave, ondemand, conservative, userspace)

6. HPC context - Why power management is critical for cost, performance, reliability, and sustainability

---

Next: Episode 1 explores the technical implementation details, hardware mechanisms, and practical strategies for power optimization in HPC systems.
